General Mesh
Our Mesh is manufactured from Hard Drawn Mild Steel Wire to NZS 3421:1975 and manufactured to NZS 3422:1975.
Download our full Information Manual here: NZ_Mesh_Info_Manual.pdf
| // Standard Mesh | // Twin Edge Economy Mesh |
| // Top Steel Rib Mesh |
| Code | Wire Diameter (mm) |
Wire Pitch (mm) |
Sheet Size (m) |
Cross Sectional Area/Metre (mm2/m) |
Sheet Weight (KGs) |
Gross Cover (m2) |
Nett Cover (m2) |
| STD668 | 4.0 | 150 | 4.65 x 1.97 | 84 | 12.49 | 9.16 | 7.52 |
| STD666 | 5.0 | 150 | 4.65 x 1.97 | 131 | 19.43 | 9.16 | 7.52 |
| STD665 | 5.3 | 150 | 4.65 x 1.97 | 147 | 21.83 | 9.16 | 7.52 |
| STD664 | 6.0 | 150 | 4.65 x 1.97 | 188 | 28.01 | 9.16 | 7.52 |
| STD663 | 6.3 | 150 | 4.65 x 1.97 | 208 | 30.91 | 9.16 | 7.52 |
| STD662 | 7.1 | 150 | 4.65 x 1.97 | 264 | 39.24 | 9.16 | 7.52 |
| STD661 | 7.5 | 150 | 4.65 x 1.97 | 295 | 43.78 | 9.16 | 7.52 |
| F14665 | 5.3 | 150 | 6.15 x 2.42 | 147 | 35.36 | 14.88 | 12.76 |
| F14664 | 6.0 | 150 | 6.15 x 2.42 | 188 | 45.32 | 14.88 | 12.76 |
| F14663 | 6.3 | 150 | 6.15 x 2.42 | 208 | 49.96 | 14.88 | 12.76 |
| STD338 | 4.0 | 75 | 4.65 x 1.97 | 168 | 24.00 | 8.98 | 7.52 |
| STD335 | 5.3 | 75 | 4.65 x 1.97 | 294 | 42.13 | 8.98 | 7.52 |
| STD333 | 6.3 | 75 | 4.65 x 1.97 | 416 | 59.53 | 8.98 | 7.52 |

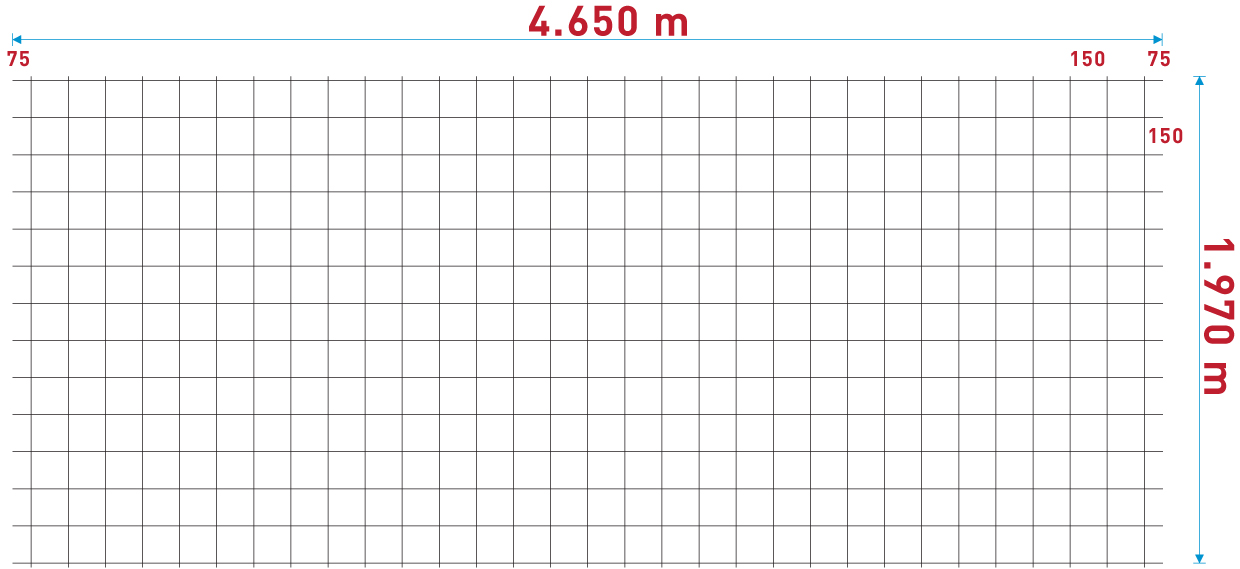

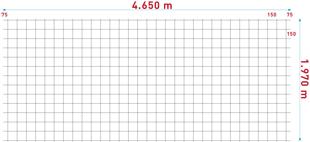

Standard Mesh Plan View (click image to enlarge)
Sheet Size: 4.650 x 1.970 m | Nett Cover: 7.52 m2 after Lapping
Distance between Centres: 150mm
Standard + F14 Lapping Detail (click image to enlarge)

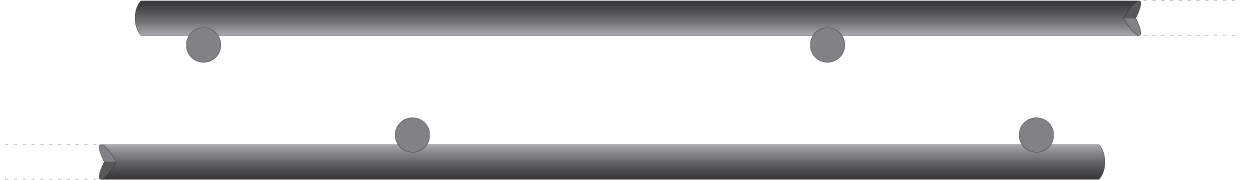

Lap 2 Wires plus 50mm

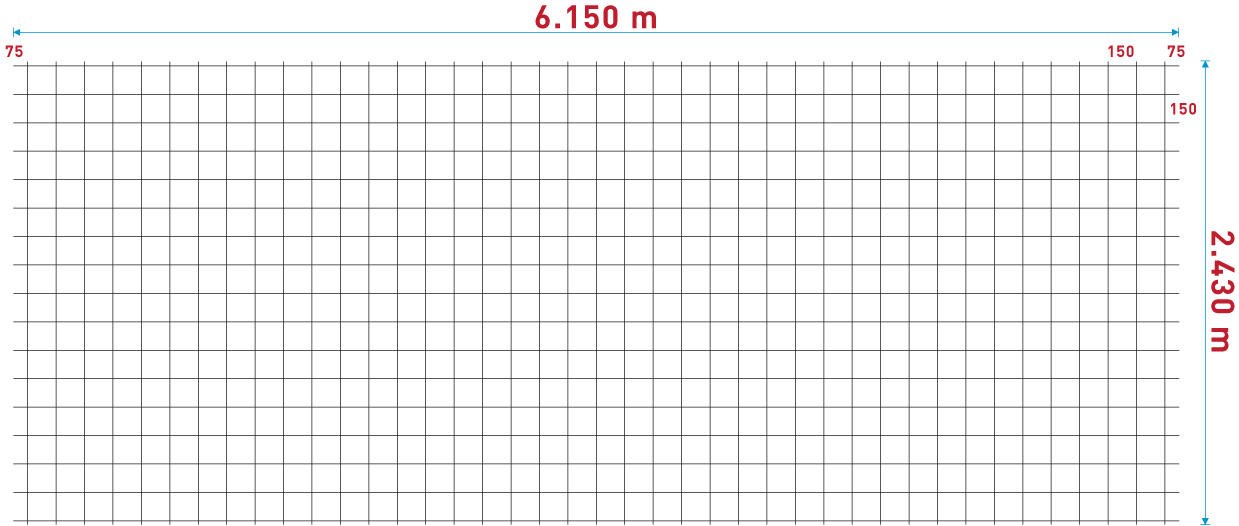

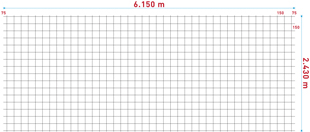

F14 Mesh Plan View (click image to enlarge)
Sheet Size: 6.150 x 2.430 m | Nett Cover: 12.76 m2 after Lapping
Distance between Centres: 150mm
// Twin Edge Economy Mesh (Equivalent of 665 and 668 Meshes)
| Code | Wire Diameter (mm) |
Wire Pitch (mm) |
Sheet Size (m) |
Cross Sectional Area/Metre (mm2/m) |
Sheet Weight (KGs) |
Gross Cover (m2) |
Nett Cover (m2) |
| TE84/10 | 5.64 | 300 | 4.90 x 2.20 | 84 | 15.93 | 10.78 | 10.08 |
| T147/10 | 7.50 | 300 | 4.90 x 2.20 | 147 | 28.36 | 10.78 |
10.08 |
Faster Job Completion
Minimised overhangs make the product easier and safer to stack, carry and emplace.
The wider spaced main wires allow easier installation of mesh support chairs, tying of laps and placement of concrete.
Ultimate Peace of Mind
The main wires are spaced at 300mm, allowing you to walk between (not on) the mesh. This safeguards under membranes from damage.
Being manufactured from deformed wire allows better adherence to concrete, and is less slippery to work on when wet.
Lower Material Costs
With the two outermost wires being 50mm apart, lapping wastage can be reduced by up to 14%.

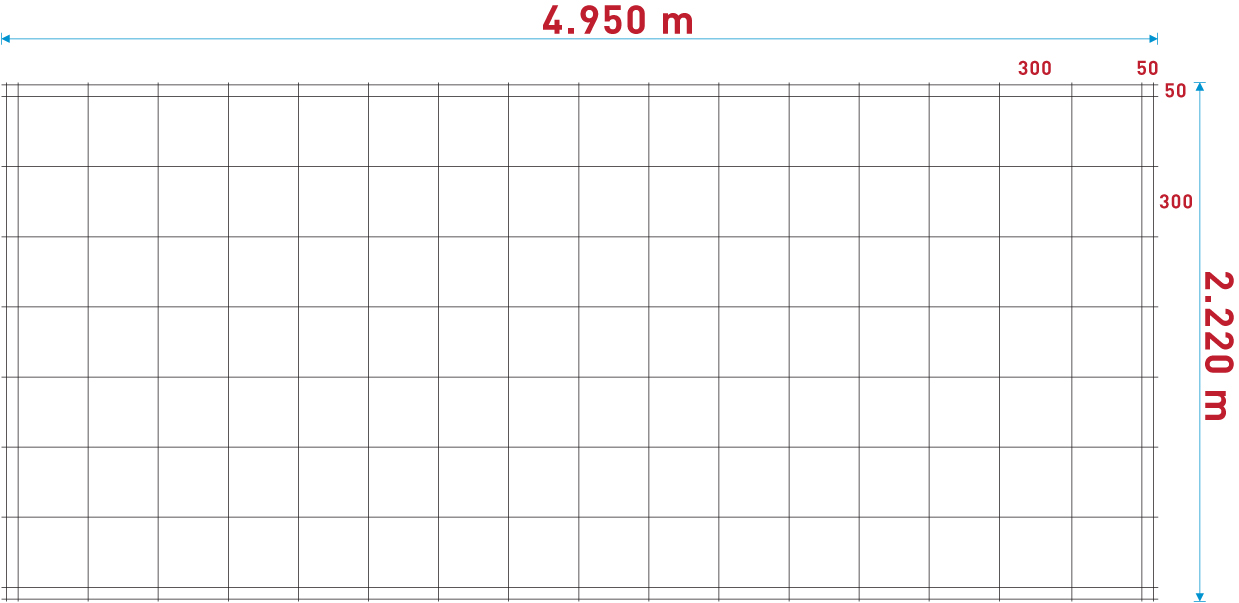

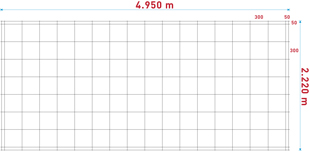

Twin Edge Economy Mesh Plan View (click image to enlarge)
Sheet Size: 4.950 x 2.220 m | Nett Cover: 10.08 m2 after Lapping
Distance between Centres: 300mm

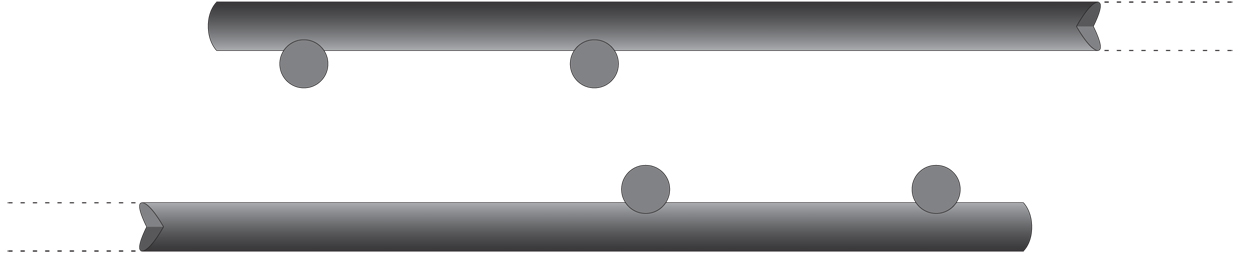

Twin Edge Economy Lapping Detail (click image to enlarge)
Lap 2 Wires ie. 100mm Lap
| Code | Wire Diameter (mm) |
Wire Pitch (mm) |
Sheet Size (m) |
Cross Sectional Area/Metre (mm2/m) |
Sheet Weight (KGs) |
Gross Cover (m2) |
Nett Cover (m2) |
| TS147 | 7.5 | 300 | 6.00 x 2.40 | 147 | 30.38 | 14.4 | 11.97 |
| TS212 | 9.0 | 300 | 6.00 x 2.40 | 212 | 43.75 | 14.4 |
11.97 |

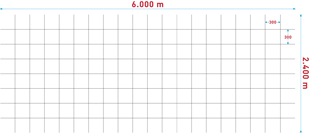

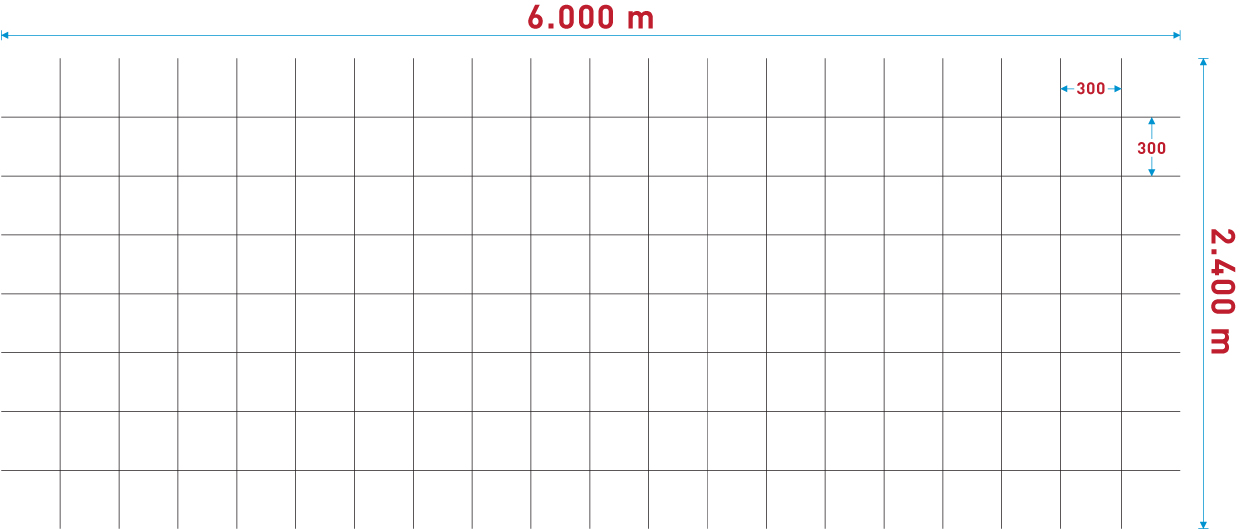

Plan View (click image to enlarge)
Sheet Size: 6.000 x 2.400 m | Nett Cover: 11.97 m2 after Lapping
Distance between Centres: 300mm

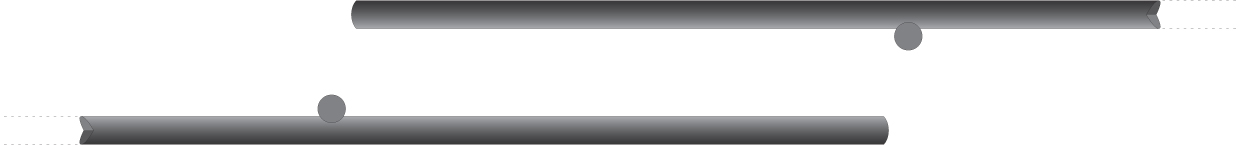

Top Steel Rib Lapping Detail (click image to enlarge)
Lap 300mm Overhang
